Channels
|
AFG-3031
1
|
AFG-3032
2
|
AFG-3021
1
|
AFG-3022
2
|
Features
|
I/O signal ground for the instrument chassis
|
Isolation
|
Connector shells for channel output(s), Sync output, 10MHz REF Input, Mod Input and Mod output are isolated from the instrument’s chassis. Maximum allowable voltage on isolated connector shells is ±42 Vpk. (DC + AC Peak)
|
Each of the signal ground of CH1 & CH2
|
-
|
Isolated
|
-
|
Isolated
|
Standard Waveforms
|
Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic
|
Arbitrary Waveforms
|
?
|
Sample Rate
|
250 MSa/s
|
Repetition Rate
|
125MHz
|
Waveform Length
|
8M points
|
Amplitude Resolution
|
16 bits
|
Non-Volatile Memory
|
Ten 8M waveforms (1)
|
User define Output Section
|
Any section from2to 8M points
|
Trigger
|
External
|
Built-in Arbitrary Waveforms
|
Sine, Square, Ramp, Sinc,Pulse, DC, Sin(x)/x, Exponential Rise, Exponential Fall, Negative Ramp, Absatan, Havercosine, Sinever, Abssin, Haversine, Stair_down, Abssinehalf, N_pulse, Stair_UD, Ampalt, Negramp, Stair_up, Attalt, Rectpuls1, Stepresp, Diric_even, Roundhalf, Trapezia, Diric_odd, Sawtoot, Tripuls1, Gauspuls1, Sinetra, Dlorentz, ln, Sqrt, Exporise, Lorentz, Xsquare, Expofall, Gauss, Since, Arccos, Arctan, Sech, Arccot, Arctanh, Sinh, Arccsc, Cosh, Tan, Arcsec, Cot, Tanh, Arcsin, Csc, Arcsinh, Sec, Barthannwin, Chebwin, Kaiser, Bartlett, Flattopwin, Triang, Blackman, Hamming, Tukeywin, Bohmanwin, Hann
|
Frequency Characteristics
|
?
|
|
Sine / Square
|
1uHz to 30MHz
|
1uHz to 20MHz
|
Pulse
|
1uHz to 25MHz
|
1uHz to 20MHz
|
Triangle / Ramp
|
1uHz to 1MHz
|
Resolution
|
1uHz
|
Accuracy
|
Stability
|
±1 ppm 0 to 50?
|
±0.3 ppm 18 to 28?
|
Aging
|
±1 ppm, per 1 year
|
Tolerance
|
? 1 uHz
|
Output Characteristics (2)
|
?
|
Amplitude
|
Range
|
1 mVpp to 10 Vpp (into 50Ω)
2 mVpp to 20 Vpp (into open-circuit)
|
Accuracy
|
± 1% of setting ±1 mVpp
|
(at 1 kHz / into 50Ω without DC offset)
|
Resolution
|
0.1 mV or 4 digits
|
Flatness
|
0.1dB <10 MHz
|
0.2 dB 10 MHz to 30 MHz
|
(sinewave relative to 1 kHz/into 50Ω)
|
Units
|
Vpp, Vrms, dBm,
|
Offset
|
Range
|
±5 Vpk ac +dc (into 50Ω)
|
±10Vpk ac +dc (into open circuit)
|
Accuracy
|
1% of setting + 2 mV+ 0.5% of amplitude
|
Waveform Output
|
Impedance
|
50Ω typical (fixed)
|
> 10MΩ (output disabled)
|
Protection
|
Short-circuit protected
|
Overload relay automatically disables main output
|
SYNC Output
|
Level
|
TTL-compatible into>1kΩ
|
-
|
TTL-compatible into>1kΩ
|
-
|
Impedance
|
50Ω nominal
|
Sine wave Characteristics
|
?
|
Harmonic Distortion(5)
|
–60 dBc DC?1 MHz, Ampl?3 Vpp
|
–55 dBc DC?1 MHz, Ampl?3 Vpp
|
–45 dBc 1MHz?5 MHz, Ampl?3 Vpp
|
–30 dBc 5MHz?30 MHz, Ampl?3 Vpp
|
Total Harmonic Distortion
|
< 0.2%+0.1mVrms
|
DC to 20 kHz
|
Spurious (non-harmonic)(5)
|
–60 dBc DC?1 MHz
|
–50 dBc 1MHz?20MHz
|
–50 dBc+ 6 dBc/octave 1MHz?30MHz (AFG-3031/3032)
|
Phase Noise
|
?-110dBc/Hz typical,15 kHz offset, fc = 10MHz,
|
Square wave Characteristics
|
?
|
Rise/Fall Time
|
<8 ns (3)
|
Overshoot
|
< 5%
|
Asymmetry
|
1% of period+1 ns
|
Variable Duty Cycle
|
20.0% to 80.0%,? 25 MHz
40.0% to 60.0%,25 to 30MHz
|
20.0% to 80.0% , ? 20 MHz
|
Jitter
|
0.01%+525ps ? 2 MHz
0.1%+75ps ? 2 MHz
|
Ramp Characteristics
|
?
|
Linearity
|
? 0.1% of peak output
|
Variable Symmetry
|
0% to 100% (0.1% resolution)
|
Pulse Characteristics
|
?
|
Pulse Width
|
20ns to 999,830s
|
Period ? Width-0.625 [(Rise Time-0.6ns)+(Fall Time-0.6ns)]
|
Duty setting range
|
0.017% to 99.983%
|
Period
|
40ns to 1,000,000s
|
Rise Time and Fall Time
|
9.32 ns to 799,900s (0.01ns or 3 digit resolution)
|
Resolution
|
0.0001%
|
Overshoot
|
<5%
|
Jitter
|
50ps typical (<10kHz)
|
Harmonic
|
|
Harmonic order
|
?8
|
Harmonic Type
|
Even, Odd, All, User
Amplitude and Phase can be set for all harmonics
|
AM
|
?
|
Carrier Waveforms
|
Sine, Square, Triangle, Ramp, Pulse, Arb
|
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
Modulating Frequency
|
2 mHz to 20 kHz
|
Depth
|
0% to 120.0%
|
Source
|
Internal / External
|
FM
|
?
|
Carrier Waveforms
|
Sine, Square, Triangle, Ramp
|
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
Modulating Frequency
|
2 mHz to 20 kHz
|
Peak Deviation
|
DC to 30 MHz
(1uHz resolution)
|
DC to 20 MHz
(1uHz resolution)
|
Source
|
Internal / External
|
PM
|
|
Carrier Waveforms
|
Sine, Triangle, Ramp
|
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
Phase Deviation
|
0° to 360°, 0.1° resolution
|
Modulating Frequency
|
2 mHz to 20 kHz
|
Source
|
Internal
|
PWM
|
?
|
Carrier Waveforms
|
Square
|
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
Modulating Frequency
|
2 mHz to 20 kHz
|
Deviation
|
0% ? 100.0% of pulse width, 0.1% resolution
|
Source
|
Internal / External
|
Additive modulation (Sum)
|
|
Carrier Waveforms
|
Sine, Triangle, Ramp, Pulse, Noise
|
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
Ratio
|
0% to 100% of carrier amplitude, 0.01% resolution
|
Modulating Frequency
|
2 mHz to 20 kHz
|
Source
|
Internal / External
|
FSK
|
?
|
Carrier Waveforms
|
Sine, Square, Triangle, Ramp
|
Modulating Waveforms
|
50% duty cycle square
|
Internal Rate
|
2 mHz to 1 MHz
|
FrequencyRange
|
DC to 30 MHz
|
DC to 30MHz
|
DC to 20MHz
|
DC to 20MHz
|
Source
|
Internal / External
|
SWEEP
|
?
|
Waveforms
|
Frequency Sweep: Sine, Square, Triangle, Ramp
Amplitude Sweep: Sine, Square, Triangle, Ramp, Pulse, Noise, ARB
|
Type
|
Frequency, Amplitude
|
Functions
|
Linear or Logarithmic
|
Direction
|
Up or Down
|
Start F / Stop FREQ
|
Any frequency within the waveform's range
|
Sweep Time
|
1 ms to 500 s (1 ms resolution)
|
Trigger Mode
|
Single, External, Internal
|
Trigger Source
|
Internal / External
|
BURST
|
?
|
Waveforms
|
Sine, Square, Triangle, Ramp, Pulse, Noise
|
Frequency
|
1 uHz to 30 MHz (4)
|
1uHz to 20MHz
|
Burst Count
|
1 to 1,000,000 cycles or Infinite
|
Start / Stop Phase
|
-360.0?to +360.0? (0.1° resolution)
|
Internal Period
|
1 us to 500 s
|
Gate Source
|
External Trigger (pulse waveforms can only be used in gate mode)
|
Trigger Source
|
Single, External or Internal Rate
|
Trigger Delay
|
N-Cycle, Infinite: 0us to 100s (1us resolution)
|
External Modulation Input
|
?
|
Type
|
AM, FM, PWM, Sum
|
VoltageRange
|
± 5V full scale
|
Input Impedance
|
10kΩ
|
Frequency
|
DC to 20 kHz
|
Modulation Output
|
AFG-3031/3021 only
|
Type
|
AM, FM, PM, PWM, SUM, Sweep
|
AmplitudeRange
|
? 1Vpp
|
Impedance
|
> 10kΩ typical
|
External Trigger Input
|
?
|
Type
|
For FSK, Burst, Sweep, N Cycle ARB
|
Input Level
|
TTL Compatibility
|
Slope
|
Rising or Falling (Selectable)
|
Pulse Width
|
> 100 ns
|
Input rate
|
DC to 1 MHz
|
Input Impedance
|
10kΩ,DC coupled
|
Latency
|
Sweep
|
< 10 us (typical)
|
Burst
|
< 100 ns (typical)
|
Jitter
|
Sweep
|
2.5 us
|
Burst
|
1 ns; except pulse,300 ps
|
10MHz Reference Output
|
?
|
Output voltage
|
1 Vp-p / 50 ? square wave
|
Output Impedance
|
50 ?, AC coupled
|
Output Frequency
|
10MHz
|
10MHz Reference Input
|
|
Input Voltage
|
0.5Vpp to 5Vpp
|
Input Impedance
|
1k ?, unbalanced, AC coupled
|
Input Frequency
|
10MHz ± 10Hz
|
Waveform
|
Sine or Square (50±5% duty)
|
Ground Isolation
|
42Vpk max.
|
External-Sync
|
Phase Delay (max.)
|
Series Connection: 39+(N-2)*39 ±25nS
Parallel connection: (N-1)*6 ±25nS
(where N=number of connected units)
|
Maximum number of connected units
|
Series Connection: 4
Parallel Connection: 6
|
Applicable Functions
|
Sine, Square, Triangle, Pulse, Ramp, Harmonic, MOD, Sweep, Burst
|
Store/Recall
|
10 Groups of Setting Memories
|

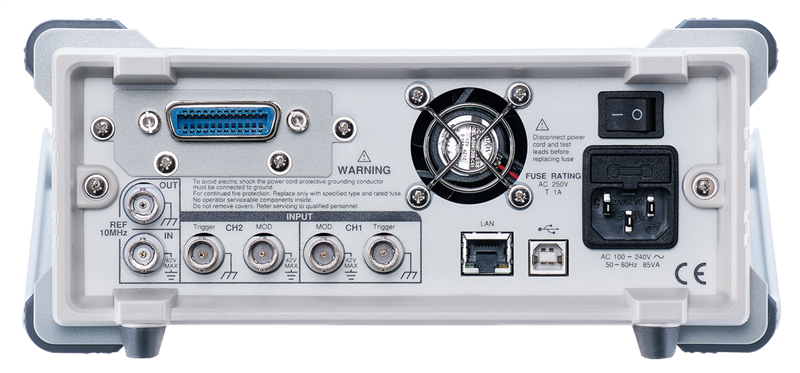

Interface
|
GPIB(Optional), LAN, USB
|
Display
|
4.3 inch TFT LCD, 480 × 3 (RGB) × 272
|
General Specifications
|
?
|
Power Source
|
AC 100?240V , 50?60Hz
|
Power Consumption
|
50VA
|
85VA
|
50VA
|
85VA
|
Operating Environment
|
Temperature to satisfy the specification : 18 ~ 28?C
|
Operating temperature : 0 ~ 40?C
|
Relative Humidity:
|
≤ 80%, 0 ~ 40°C
|
≤ 70%, 35 ~ 40°C
|
Installation category? CAT ?
|
Operating Altitude
|
2000 meters
|
Pollution Degree
|
IEC 61010 Degree 2, Indoor Use
|
Storage Temperature
|
-10 ~ 70?C, Humidity: ≤70%
|
Dimensions (WxHxD)
|
Bench Top : 265 (W) x 107 (H) x 374 (D)
|
Weight
|
Approx. 4kg
|
Safety Designed to
|
EN61010-1
|
EMC Tested to
|
IEC-61326, EN 55011
|
Accessories
|
Test cable(GTL-110×1 for AFG-3031/AFG-3021, GTL-110×2 for AFG-3032/AFG-3022), User Manual Compact Disk × 1, Quick Start Guide × 1, Power cord × 1
|
(1). A total of ten waveforms can be stored. (Every waveform can composed of 8M points maximum.)
|
(2). Add 1/10th of output amplitude and offset specification per ?C for operation outside of 0?C to 28?C range (1-year specification).
|
(3). Edge time decreased at higher frequency.
|
(4). Sine and square waveforms above 25 MHz are allowed only with an "Infinite" count.
|
(5). Harmonic distortion and Spurious noise at low amplitudes is limited by a -70 dBm floor.
|
