Częstościomierz - LD 575 48

9 349,23  (7 601,00  netto)

* podana cena jest automatycznie przeliczona wg dzisiejszego kursu EUR w NBP.

Najniższa cena w ciągu 30 dni: 7 601,00  netto

Kategorie: Częstościomierze

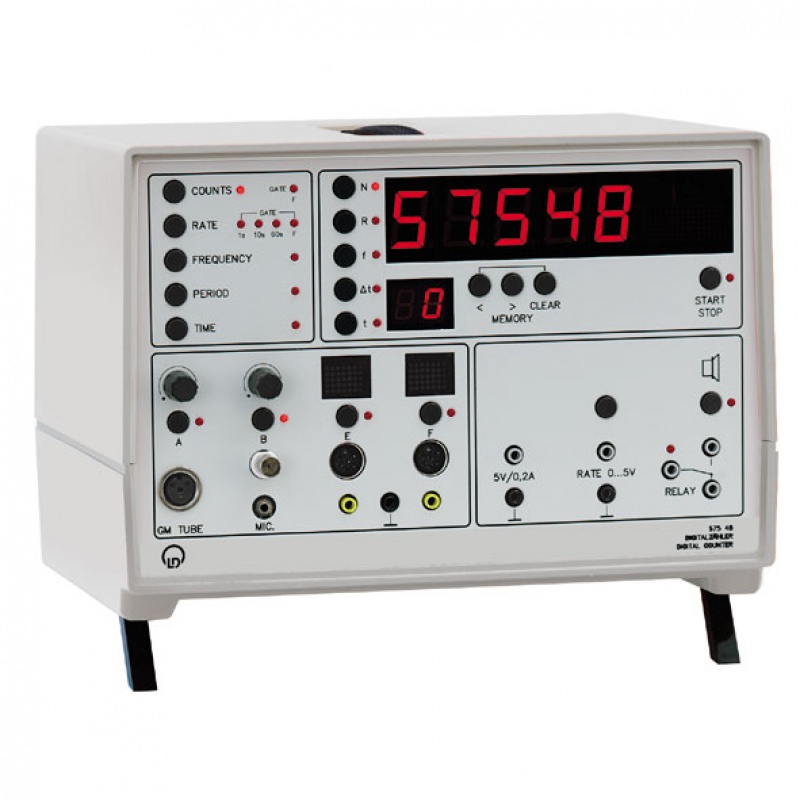

Universal demonstration meter for pulse counting and rate, frequency, period and time measurements with serial interface for computer connection (incl. windows software)

  • Direct connection for counter tube with adjustable high voltage (0–640 V)
  • BNC input (1 MΩ) for rate, frequency or period measurements (frequency up to 2 MHz) with adjustable trigger threshold (0.1-5 V) and switchable coupling (AC or DC)
  • Microphone input (3.5 mm jack socket)
  • 2 light barrier inputs (also as 4-mm sockets) for simultaneous frequency, period or time measurements (time resolution 1 µs, choice of edge)
  • Separate voltage output (5 V/ 200 mA)
  • Recorder output for rate measurements at input A
  • Built-in loudspeaker (switchable)
  • Relay switches over simultaneously with start of measurement
  • Memory capacity for up to 2000 measured values
  • Serial interface (RS 232) for connection to computer
  • Measuring and evaluation software for Windows 2000/XP/7
  • 5-digit numerical display, 25 mm high
  • 2-digit stored-value counter, 12 mm high
  • 2 display fields for edge selection and mode
  • Mains voltage: 230 V, 50/60 Hz
  • Power consumption: approx. 40 VA
  • Dimensions: 30 cm x 21 cm x 23 cm
  • Weight: 2.9 kg
