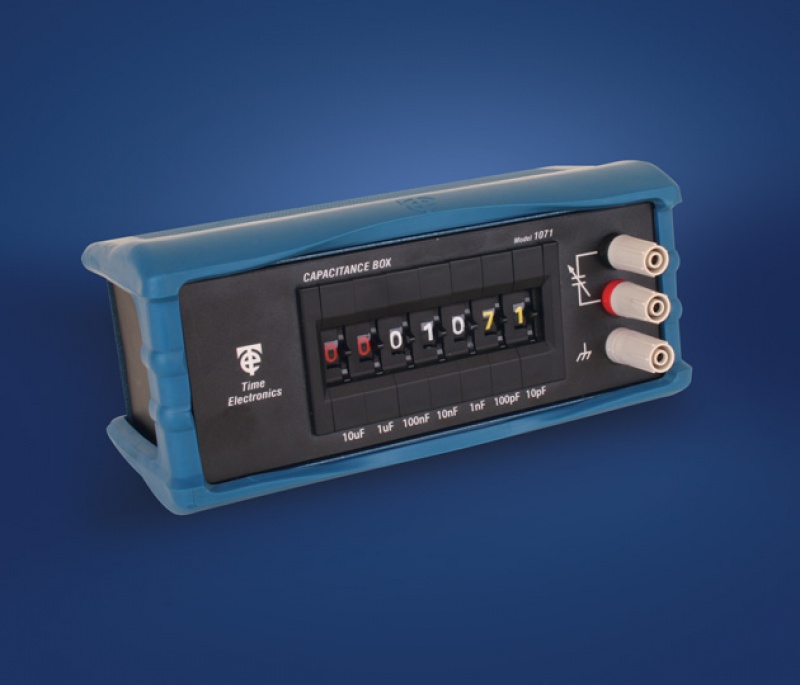

Dekada pojemnościowa / Kondensator dekadowy Time Electronics 1071

  • 10pF to 100μF
  • 1% accuracy
  • In-line readout
  • Colour coded digits
  • Safety terminals
  • Bi-polar working
  • Supplied with protective cover

High accuracy and wide range makes the 1071 capacitance decade box suitable for applications in industry and education.

It is both compact and robust, housed in a metal case that provides complete screening, with a protective rubber cover to guard the 1070 against everyday wear and tear. The 7-digit thumbwheel switch enables simple and precise setting of the capacitance value.

Clear Visual Indication
To make selecting and reading the setting easy the 1071 incorporates colour coded digits: μF - red, nF - white, pF - yellow.

Safety Terminals
Compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.

Added Protection
The 1071 comes fitted with an ergonomic rubber cover providing increased protection and durability. It has a textured grip for comfortable handling and side openings to place labels. It is easy to remove if the user prefers a stand-alone unit or to house the 1071 in the optional 9026 carry case.

Range 0 to 100μF
Resolution 10pF steps (9 steps per decade)
Residual Capacitance Approximately 55pF
Decade 10pF 100pF 1nF 10nF 100nF 1μF 10μF
Accuracy @ 1kHz 1% ± 5pF 1% ± 5pF 1% ± 5pF 1% 1% 1% 5%
Capacitor Type Silver mica Silver mica Silver mica Silver mica Polycarbonate Polycarbonate Polyester

Max Voltage

300V DC
200V AC

300V DC
200V AC

300V DC
200V AC

100V DC
72V AC

100V DC
72V AC

100V DC
115V AC

63V DC
50V AC

Max Temp Coefficient 200ppm/°C 200ppm/°C 50ppm/°C 50ppm/°C 75ppm/°C 75ppm/°C 300ppm/°C
Power Factor @ 1kHz < 0.0025 < 0.0015 < 0.002 < 0.01 < 0.01 < 0.01 < 0.01
Insulation Resistance > 50GΩ > 50GΩ > 50GΩ > 30GΩ > 30GΩ > 30GΩ > 30GΩ
Dimensions W215 x H100 x D120mm including protective cover (W200 x H75 x D110mm without)
Weight 1kg including protective cover (0.8kg without)
Supplied With Protective cover (fitted) and user manual
Optional Extras Leather carry case. Calibration certificates traceable NPL and UKAS
Country of Origin UK
