E 2.1.1.1 Elektromagnetyzm i indukcja, system PLUG-IN

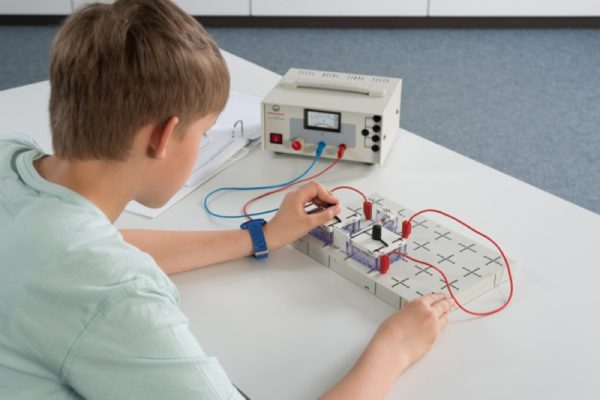

The experiments are carried out using the STE plug-in system Electricity/Electronics.

Objectives

  • Recognition of basic physical principles
  • Implementation of electrical circuits according to circuit diagrams

Practically all electrical machines generate torque and forces from the interaction between magnetic fields and electric current. The transformation of electricity by transformers also requires magnetic fields which change over time. Student experiments on electromagnetism and induction therefore form the essential physical basis for understanding electrical machines.

The equipment set incorporates student experiments which can be carried out in a laboratory safely using safety extra-low voltage. Experiment instructions are contained in a manual in either printed or digital form.

The target group is made up of students in general or vocational education. The experiments are designed as an introduction at a simple level of understanding.

For more advanced work, the following sets are recommended:

  • E2.1.1.2 Three-phase transformers
  • E2.1.1.4 Generators and motors

Topics

  • Circuits, conductors and insulators
  • Change-over/two-way circuits
  • AND and OR circuits
  • Measurement of current and voltage
  • Ohm's law
  • How the resistance of a wire depends on material, length and cross section
  • Distribution of voltage along a current-carrying wire (potentiometer)
  • Resistors connected in series and parallel
  • Batteries connected in series and parallel
  • Terminal voltage and internal resistance of a voltage source
  • How resistance of a wire depends on temperature
  • Fuses, bimetallic switches, thermostats
  • Power and work associated with electric current
  • Magnetic effect of electric current
  • Current carrying conductors in an magnetic field
  • Magnetic field of a coil
  • Soft iron instruments/magnetic relays/buzzers/speakers
  • Electromagnetic induction
  • Transformers
  • Current and voltage transformation
  • Self-induction by a coil
  • AC generators, synchronous motors
  • Coils and capacitors
  • DC resistance and AC impedance of a coil
  • Capacitors in DC and AC circuits

Components of equipment sets

588 871S   Advanced Science Kit - Set BEL 1
588 875S   Advanced Science Kit - Set ELI 1 1
588 876S   Advanced Science Kit - Set ELI 2 1
685 48ET5   Batteries 1.5 V (D, mono), set of 5 1
531 120   Multimeter LDanalog 20 2
459 32   Candles, set of 20 1
505 07   Bulbs, 4 V/0.16 W, E10, set of 10 1
505 08   Bulbs, 12 V/3 W, E10, set of 10 1
505 11   Bulbs, 2.5 V/0.25 W, E10, set of 10 1
550 42   Constantan resistance wire, 0.35 mm diameter, 100 m 1
550 46   Chrome-nickel resistance wire, 0.25 mm diameter, 100 m 1
550 47   Chrome-nickel resistance wire, 0.35 mm diameter, 100 m 1
550 51   Iron resistance wire, 0.2 mm diameter, 100 m 1
578 39   Capacitor (electrolytic), 100 µF, STE 2/19 1
578 40   Capacitor (electrolytic), 470 µF, STE 2/19 1
667 017   Scissors, 125 mm, round-ended 1
501 44   Connecting leads, 19 A, 25 cm, red/blue, pair 3
501 45   Connecting lead, 19 A, 50 cm, red/blue, pair 1
501 441   Connecting lead, 19 A, 25 cm, black, pair 1
588 35DE   LIT: PS3.5 Electricity - Electromagnetism, German 1
588 34DE   LIT: PS3.4 Electricity - Basic electric circuits, German 1
588 35EN * LIT: PS3.5 Electromagnetism 1
588 34EN * LIT: PS3.4 Basic electric circuits 1

Articles marked with * are not essential, we do however recommend them to carry out the experiment.
