E 2.4.1.1 Energoelektronika System Plug-in

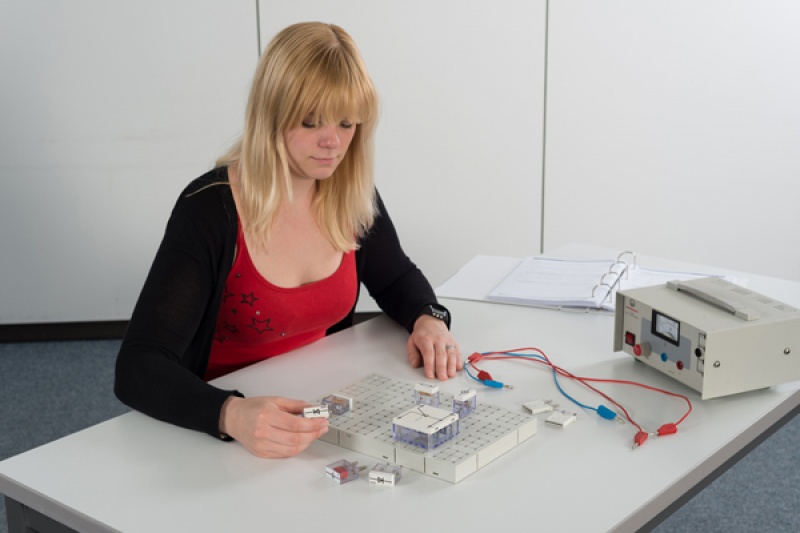

The experiments are carried out using the STE plug-in system Electricity/Electronics.

Objectives

  • Recognition of basic physical principles
  • Implementation of electrical circuits according to circuit diagrams

The STE student experiments for power electronics investigate the characteristics of power semiconductors and basic standard circuits. All the experiments work with single-phase safety extra-low voltage, which is non-hazardous. Required previous knowledge includes AC technology, semiconductor technology and experience with handling an oscilloscope.

The target group is made up of students in general or vocational education. The experiments are designed as an introduction at a simple level of understanding.

To gain a deeper understanding, experiments with the compact system E2.4.2.1, static converter valves and the COM3LAB courses on power electronics are ideal.

Topics

  • Components of power electronics
  • Characteristics of thyristors, triacs and diacs
  • Thyristors used as DC switches and choppers
  • Pulse generators and trigger circuits
  • Phase angle control
  • Circuits with thyristor trigger components
  • Circuits with dimmers: touch dimmers, light dimmers
  • Thyristor DC quenching
  • Zero-voltage switches
  • Full-wave control

Components of equipment sets

727 531N Basic set STE 6.1.1 1
727 657N Supplementary set T 6.1.18 1
726 50  4  Plug-in board, 297 mm x 300 mm, STE 1
522 621  8  Function generator S 12 1
726 962  4  * Function generator 200 kHz 1
562 791  4  * Plug-in power supply, 12 V AC 1
531 57 * Multimeter METRAport 3A 1
531 282  8  * Multimeter Metrahit Pro 1
531 172  8  Digital multimeter DMM120 1
575 231  8  Probe 100 MHz, 1:1 / 10:1 2
501 48  4  Bridging plugs, STE 2/19, set of 10 3
501 532  8  Connecting leads, 19 A, set of 30 1
726 19  8  * Panel frame SL85, single-level 1
726 50  4  * Plug-in board, 297 mm x 300 mm, STE 1
726 88  8  * AC/DC stabilizer 1
727 510N  8  * Complete equipment set DC/AC/EL 1
565 711L  4  LIT: Discrete components and basic circuits in electronics T 6.1.1, German (teachers' edition) 1
565 711S  4  LIT: Discrete components and basic circuits in electronics T 6.1.1, German (students' edition) 1
565 981L  4  LIT: Basic Power Electronics T 6.1.18, german 1
565 981S  4  LIT: Basic Power Electronics T 6.1.18, german 1
565 712  4  * LIT: Discrete components and basic circuits in electronics T 6.1.1 1
565 982  4  * LIT: Basic Power Electronics T 6.1.18 (English) 1

Articles marked with * are not essential, we do however recommend them to carry out the experiment.
