Kurs komponenty elektroniczne część 2 nr kat. 7001601 – COM3lab

[700 1601] COM3LAB Course: Electronic Components II

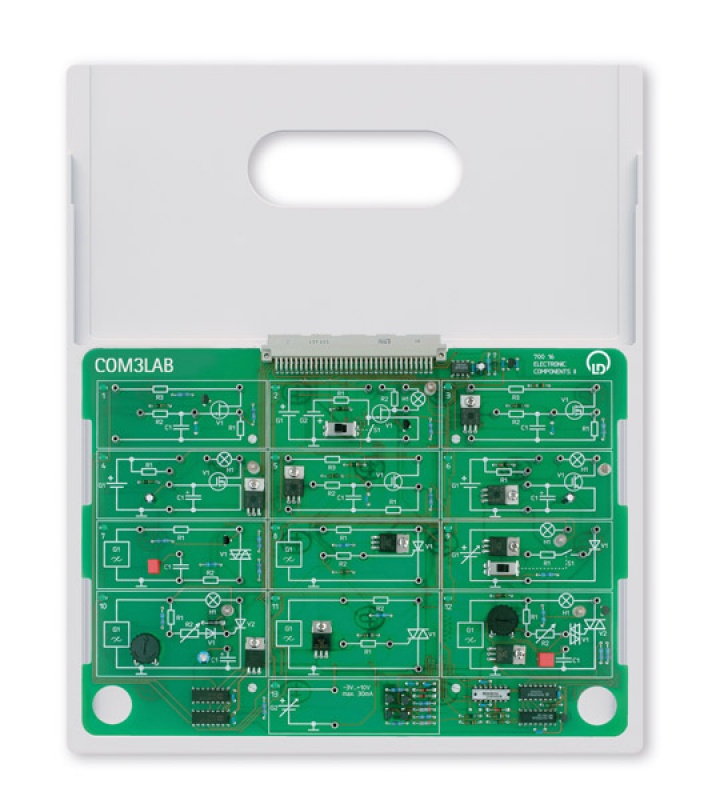

Course on electronic components, consisting of an experiment board with 12 different circuits for mounting into the master unit and a multimedia CD with an interactive training program for the following experiments:

  • Design of the FET
  • Transfer characteristic of the JFET
  • Output characteristic family of a JFET
  • JFET as a switch
  • Characteristics of the MOSFET
  • The MOSFET as a switch
  • Characteristics of the IGBT
  • The IGBT as a switch
  • Characteristic of the DIAC
  • Characteristic of the thyristor
  • Thyristor in the DC circuit
  • Phase angle control with a thyristor
  • Characteristic of the TRIAC
  • Phase angle control with a TRIAC

Additional functions:

  • Word processing
  • Printer
  • Pocket calculator
  • Free experimentation
  • Glossary



The experiment board is located in a stable course frame. The master unit is pushed onto the course frame and connected to the board. The security lock ensures safe communication.

The experiment board is powered by the Master Unit.
The wiring of the experiments carried out over 2 mm cable.

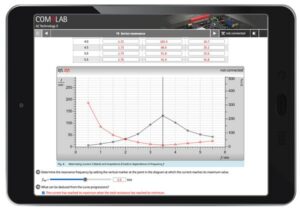

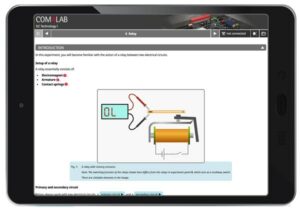

Course content, experiment instructions and tasks are taught through a course-specific software.

700 1601 COM3LAB Course : Electronic components II

Dodatkowo wymagane :

700 00CBTEN  DVD: COM3LAB software, English 1
700 020 COM3LAB Master Unit 1
700 022 Safety cable 2mm 1
  PC with Windows XP/Vista/7/8

Kurs wykorzystuje następujące przyrządy pomiarowe:

  •  2 multimetry cyfrowe
  •  oscyloskop cyfrowy
  •  generator funkcyjny
  •  analizator cyfrowy

Czas trwania kursu  180 min ( 4 x 45min )
