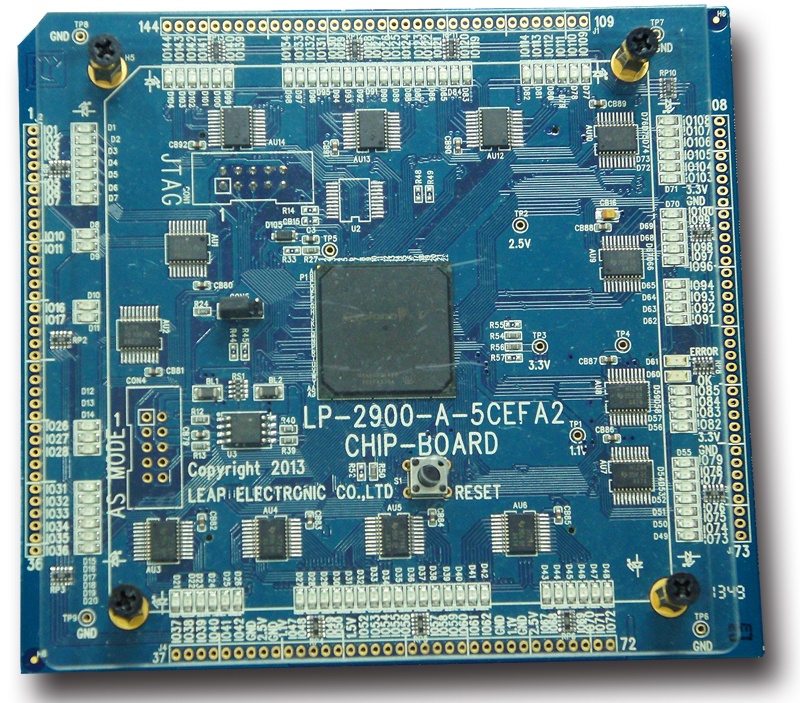

Płytka ćwiczeniowo projektowa do układów CPLD/FPGA – LP-2900+CPLD/FPGA CHIP BOARD

CPLD/FPGA Digital Logic Circuit Design Experiment Kit

Introduction

Nowadays, CPLD and FPGA have been the first-choice components for the designers. It is suitable for the designers on application for communication, industrial automation, intelligent instrument, image processing, extensive engine control, etc. In order to allow users have excellent experimental platforms, LEAP series has provided platforms based on Altera or XILINX. Enabling engineers to realize the designs of logical circuit from experimental units.

Test Content
Combinational logic design, simulation and test
  1. Basic logic
  2. Subtractor
  3. Decoder
  4. Combinational logic
  5. Comparator
  6. Multiplexer
  7. Adder
  8. Encoder
  9. Demultiplexer

Sequential logic circuit design, simulation and test
  1. Flip-flop device
  2. Shift register
  3. Shift counter register
  4. Synchronized counter
  5. Asynchronous counter
Analog logic circuit design, simulation and test
  1. A/D converter
  2. D/A converter
Thematic Application Test
  1. 8 × 8 dual color spot array LED control test.
  2. Digital clock
  3. Counter
  4. Electronic alarm clock
  5. Traffic light control
  6. Electronic dice
  7. Keyboard scan
  8. LCD display control test
  9. A/D, D/A converter test
  10. Easy CPU design
  11. VHDL/AHDL design
  12. Matching 8051 thematic test
Specification
  • Communication: USB or Printer Port
  • Power: 100V AC~240V AC
  • Frequency Range: 50/60 Hz
  • Dimension: 32cm x 22.6cm x 3.0/8.5cm
  • Weight: 3.5Kg
  • Operating Altitude: up to 5000 m
  • Operating Humidity: 90? (non-condensing)
  • Temperature: +5? ~ +45?
Other Specifications
  • Chip Supported:

    • ALTERA: FLEX10K30ATC144 (TQFP-144) /  5CEFA2 (FBGA-256)
    • XILINX: XC2S50 (PQFP-208)
  • Signal Generation Unit:

    1. Programmable frequency generator
    2. Standard frequency 1K/10K/ 100K/1M/10MHz
  • Logic Input Switch:

    1. 8 × 1 logic input original press point with light
    2. 8 × 2 logic input Dip switch
    3. 4 impulse press button generator (2 positive pulse; 2 negative pulse)
    4. 3 × 4 array keyboard
  • Output Unit:

    1. 8 × 8 dual color point array LED display
    2. LCD 16 × 2 monitor
    3. 6 digits 7 nodes monitor
    4. 3 × 4 LED output
    5. Buzzer output x 1 set
  • Linear Unit:

    1. 8bit D/A converter x 2 sets
    2. 8bit A/D converter x 1 set
  • MPU unit:

    • 8051 and CPLD/FPGA match circuit test

PC System Requirement
  • Operating System: Refers to the original CPLD / FPGA software install requirement.

Standard Accessories
  • Main unit x1
  • CD x1 (included Altera Baseline V9.23 driver)
  • AC power cord x1
  • 25-pin printer cable or USB cable x1
