Rezystor rozładowczy pomiarowy Kongter K-900

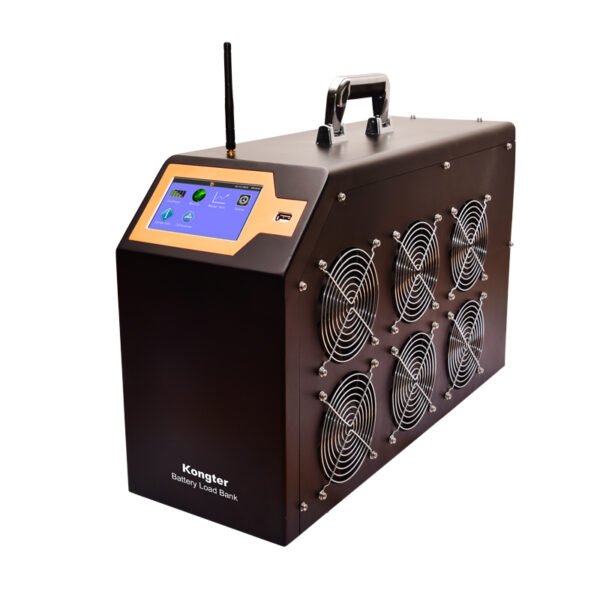

K-900 DC Load Bank

K-900 series are your best choice DC load bank with Kongter’s updated solutions. This new series resistive dummy load includes a series customized load bank models that feature rugged design and and excellent performance. They facilitate your work for DC load and battery capacity testing. With different models of DC load bank, it covers a wide range from 12V to 480V nominal voltages with current up to 600A. Its big TFT touch screen with vivid display makes it more user-friendly for setting and operation. Kongter’s new PC software make it easy for measurement monitoring and report print out.

Same CDL in K-900 DC load bank can also work independently with “String Data Logger” to make another product, BDL-3927 Battery Data Logger using same PC software. For quick test of battery internal resistance or conductance, please refer to BT-301 Battery Condition Analyzer.

Optional Cell Data Logger (CDL)
Each CDL is recording voltage of up to 12 cells for all cell types (1.2V, 2V, 6V and 12V). It has wireless communication with K-900 main unit and PC. Kongter also offers customized CDL for non-standard battery types. CDL numbers are easily expandable to cover more battery volumes.

CDL can work with SDL (String Data Logger) without load bank for monitoring of cell voltage, string voltage, temperature and current in the same software.

Kongter battery load bank data logger

Its Connection:
One CDL is connected with 12 cells of 1.2V, 2V, 6V or 12V. Therefore, different battery systems will require different amount of CDLs.

Kongter PC Software
All standard load units of K-900 come with PC software. With the software, you could have a real-time data monitor for the whole process of discharge, analyze the measurement data and easily print out the complete report. Same software is also compatible for other battery test equipment of Kongter.













Power supply 1)    AC 220V/110V, 50/60Hz;
2)    DC (from batteries, optional for some models)
Cell type 1)     Standard: 2V, 6V and 12V
2)     Customized: 1.2V or other uncommon cell types.
Discharge voltage range 10V-552V
Customized as nominal voltages of 12V, 24V, 48V, 72V, 80V, 110V, 120V, 220V, 240V, 380V and 480V.
Discharge current range Single load bank: 10A-600A
Parallel load: 10A-3000A (up to 5 loads)
Current is customer-tailored per different string voltage
Accuracy Current: 1%
Voltage: 0.5% – 0.8%
Resolution Current: 0.1 A or 0.5%
Voltage: 0.001 V
Sampling Interval 5s –1min
Discharge pattern Constant current discharge
Display 128*64 pixel, 5” TFT touch screen
CDL power supply 10~90V DC
CDL measurement range 0~15V DC
Data transfer USB, Wifi (for CDL to load bank and PC)
Cooling Forced air
Operation Temperature 0℃~40℃ (32 – 104 °F)
Humidity 5%~90% Relative humidity
Standard CE marking, EMC standard
Main Unit Dimension2 S: 400 x 177 x 288 mm (15.7 x 7 x 11.3 in)
M: 520 x 202 x 355 mm (20.5 x 8 x 14 in)
L: 555 x 225 x 435 mm (22.5 x 8.9 x 17.2 in)
XL: 603 x 400 x 740 mm (23.7 x 15.7 x 29 in)
XXL:762 x 406 x 737 mm (30 x 16 x 29 in)
Main unit Weight S: 11 kg (24 lbs)
M: 16 kg (36 lbs)
L: 21 kg (47 lbs)
XL: 42 kg (93 lbs)
XXL: 55 kg (122 lbs)
Note:
  1. Quantity of CDL and cable in standard CDL package are based on 2V, 6V and 12V. For measurement of 1.2V Ni-cd batteries, you will require some more CDLs and relevant cables.
  2. Measurement range, dimension and weight vary depending on different models. Please confirm with our sales representative upon orders.
Our Advantages
  • K-900 has different customized models to meet requirement of customers from various industries exactly.
  • Its optional data loggers enable a wireless communication with computer. And it will monitor the whole process of discharge including voltage of EACH cell.
  • Standard discharge function and other functions like assistant discharge, parallel load, external load, charge monitor. Compatible with non-Kongter load banks.
  • Rugged, reliable and durable with very good price.
Features
  • Touch screen with easy and user-friendly data setting and operation
  • Optional wireless CDL enables real-time PC monitor during measurement
  • It sets 4 conditions for discharge auto shut-down: Discharge time, discharge capacity, string voltage and cell voltage
  • Continued discharge available when previous discharge is stop abnormally
  • Discharge data adjustable during battery discharge
  • Parallel connection of up to 5 units for higher discharge current
  • Assistant discharge to add load to even non-Kongter load banks
  • Can monitor measurement of other load banks or battery charger
  • Accurate data measurement and vivid waveforms of PC software
  • Auto sorting for lag-out batteries during discharge
  • Powerful management software for data analysis and report generation
  • Automatic protection upon over-heating and overload
K-900 series consisit of many customized models of DC load bank to fit almost all users of different industries. For telecom, power, forklift and other industries, we have the regular models of load bank as below. If you do not find the right model, please kindly contact us. Kongter load bank order info
