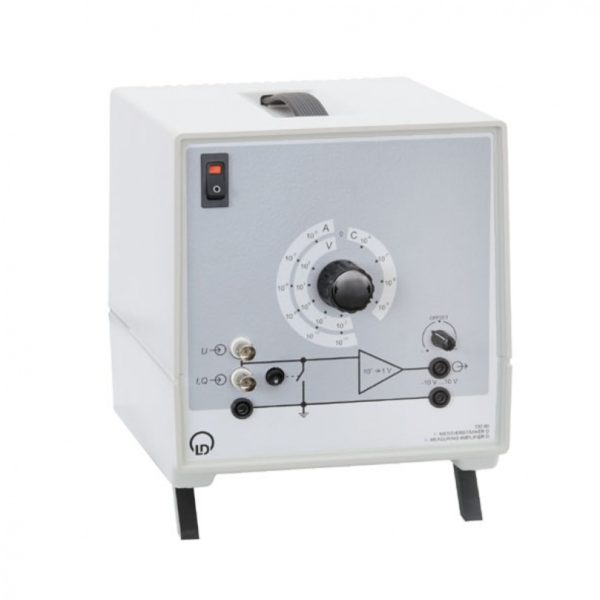

Wzmacniacz pomiarowy -LD 532 00

Name: Wzmacniacz pomiarowy -LD 532 00
SKU: 3006981
Price: 5570.63 PLN
Availability: InStock

6 851,10 zł (5 570,00 zł netto)

* podana cena jest automatycznie przeliczona wg dzisiejszego kursu EUR w NBP.

Dodaj do zapytania

Najniższa cena w ciągu 30 dni: 5 570,00 zł ( 1300.00 EUR ) netto

Kategorie: Wzmacniacze

Opis
Specyfikacja

For measurement of currents, charges (static) and voltages at low-error current levels in connection with an external voltmeter with an internal resistance exceeding 3 kΩ and a range between 0.3 V and 3 V (10 V max.), for example demonstration moving-coil instrument (531 900), and TY or XY plotters. Including BNC-4-mm cable (575 24).

Examples of applications:

Proving the existence of electrostatic induction charges
Measurement of very large resistances
Equipotential lines of electrical fields in weakly-conducting liquids
Capacitance measurements
Verifying the piezoelectric effect
Demonstrating the photoelectric effect

Input:
Current/charge: BNC socket
Internal resistance: 100 kΩ (const.)
Voltage: BNC socket
Internal resistance: 1 GΩ (const.)
Zero: zero push button and zero adjust potentiometer
Output: 4-mm sockets
Type of amplifier: DC voltage and current amplifier
DC voltage ranges: 10 mV to 100 V (5 ranges)
DC current ranges: 10-11 A to 10-6 A(6 ranges)
Charge ranges: 10 -9 As to 10 -6 As (4 ranges)
Input resistance/impedance:
Current/charge: 100 kΩ
Voltage: 1 GΩ
Accuracy:
Current/charge: typically 3%
Voltage: typically 5%
Output voltage: 0.3 to 3 V (max. 10 V)
Output resistance: 100 Ω
Mains voltage: 230 V, 50/60 Hz
Power consumption: 6 VA
Fuses: T 0.125 B
Dimensions: 20 cm x 21 cm x 23 cm
Weight: 2 kg
