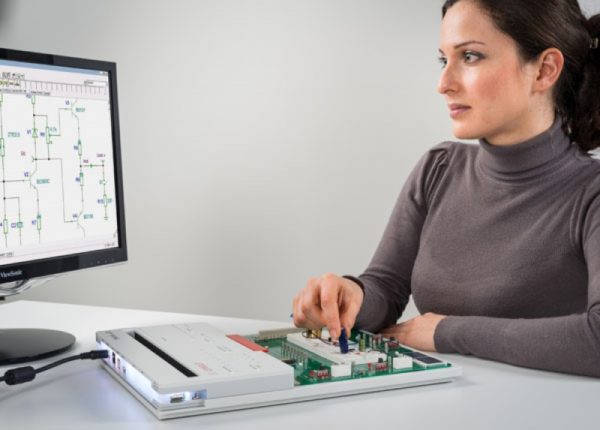

The COM3LAB Protoboard and Electina form the ideal means for carrying out project work. Schoolchildren and students receive a task and must solve it from A to Z as in their later professional life. This is a good opportunity for checking how schoolchildren implement their knowledge and where certain skills are still lacking.

The project work encourages the schoolchildren's motivation. They learn how to deal with a problem independently and solve it successfully.

Learning objectives

  • Independent development of a project
  • Circuit design
  • Analysis
  • Troubleshooting
  • Circuit design
  • Boosting of personal decision-making and resposibility

The subject-specific modules Amplifier circuits and power supply circuits are complete projects, which the students can either work on independently or on instruction. the subject-specific modules contain all required electronic components.

Amplifier circuits

  • Single-stage amplifier using an emitter-base circuit
  • Bootstrap circuit
  • Darlington circuits
  • Two-stage, capacitively coupled amplifier
  • Two-stage, directly coupled amplifier
  • Amplifier with negative feedback
  • Differential amplifier
  • Push-pull output stage
  • Barrier junction-FET in various base circuits

Power supply circuits

  • Voltage regulation with Z diode
  • Voltage regulation with Z diode and parallel transistor
  • Voltage regulation with Z diode and series transistor
  • Power supply with adjustable voltage and adjustable current limiting
M1.1.3.1 COM3LAB : Circuit Design



Components of equipment sets


700 9101 COM3LAB Protoboard II 1
700 020 COM3LAB Master Unit 1
700 022 Safety cable 2mm 1
700 00CBTDE  4  DVD: COM3LAB software, German 1
700 00CBTEN  4  DVD: COM3LAB software, English 0
  700 00CBTXX – The COM3LAB – Software is also available in French, Dutch, Polish, Russian, Spanish, etc. 1
700901-01  8  Electina Standard, COM3LAB support (1 license), german 1
700901-11  8  Electina Design Suite, PCB, COM3LAB support (1 license), german 0
700902-01 Electina Standard, COM3LAB support (1 license) 1
700902-11 Electina Design Suite, PCB, COM3LAB Support (1 licence) 0
